Closed Pipe Welding Machine MWF-80

Product Mode:MWF-80

Welding Method:Self-fusion

Product Features:Support welding wall thickness less than or equal to 2.5mm

Protection Method:Argon gas and circulating water cooling

Welding Gun Weight:4KG

Send Inquiry

1. Application industry: Food and medicine, refrigeration, biology, fluids, pipeline installation, etc

2. Scope of application: Welding of materials such as stainless steel, carbon steel, titanium alloy, etc

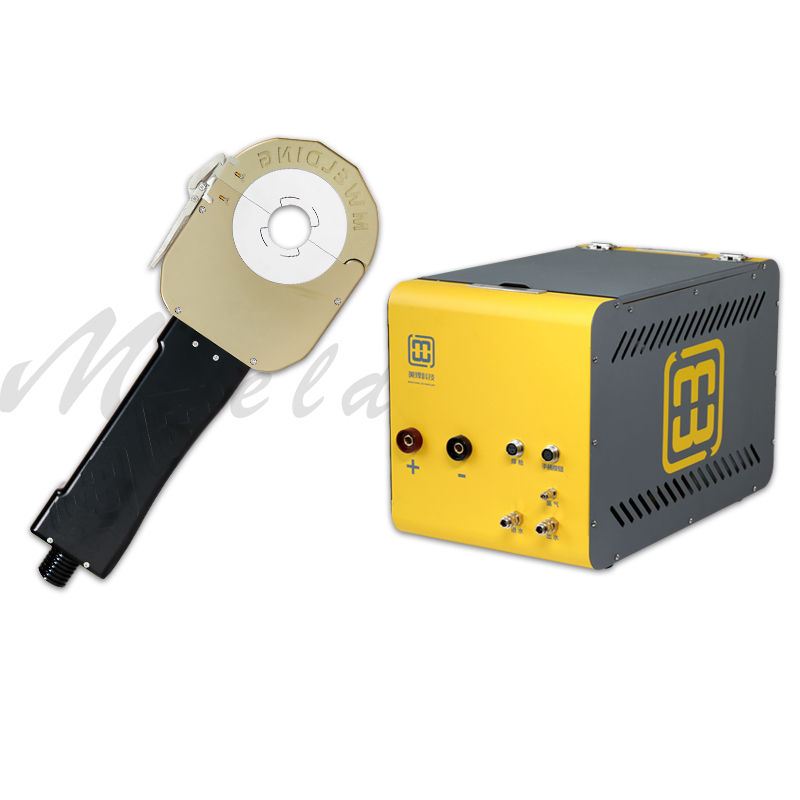

3. This device is used in conjunction with the MWA-200 integrated control power supply

4. Welding form: docking, plug-in connection

5. Warranty period: two years

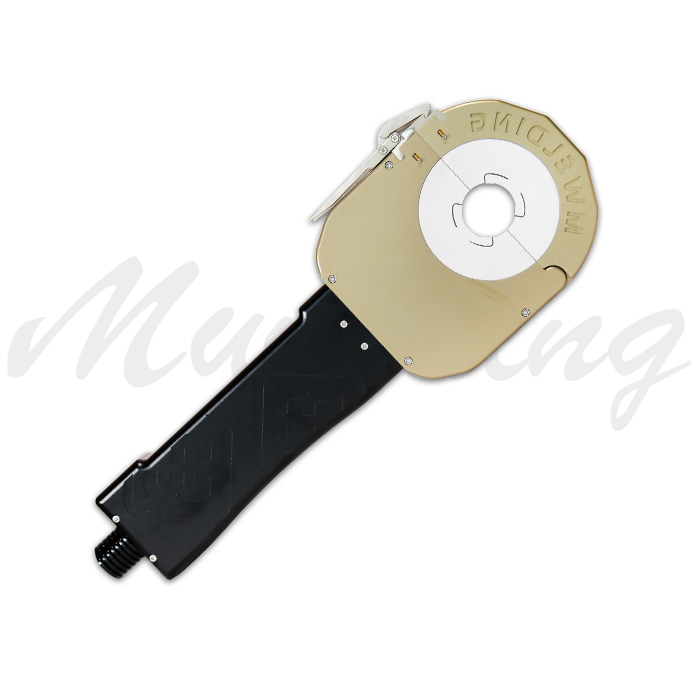

1. Ultra mini welding gun design, with a welding gun body thickness of only 38mm

2. The entire body of the welding gun is water-cooled, improving the loading rate of the welding gun

3. The welding gun adopts multi-channel gas protection to improve welding quality

4. Special welding gun designs, supporting welding wall thickness less than or equal to 2.5mm

5. Adopting imported core components and materials, durable, reliable, safe, and precise

Suitable pipe diameter	Φ19.05mm-Φ76.2mm	Cooling method	Circulating water cooling

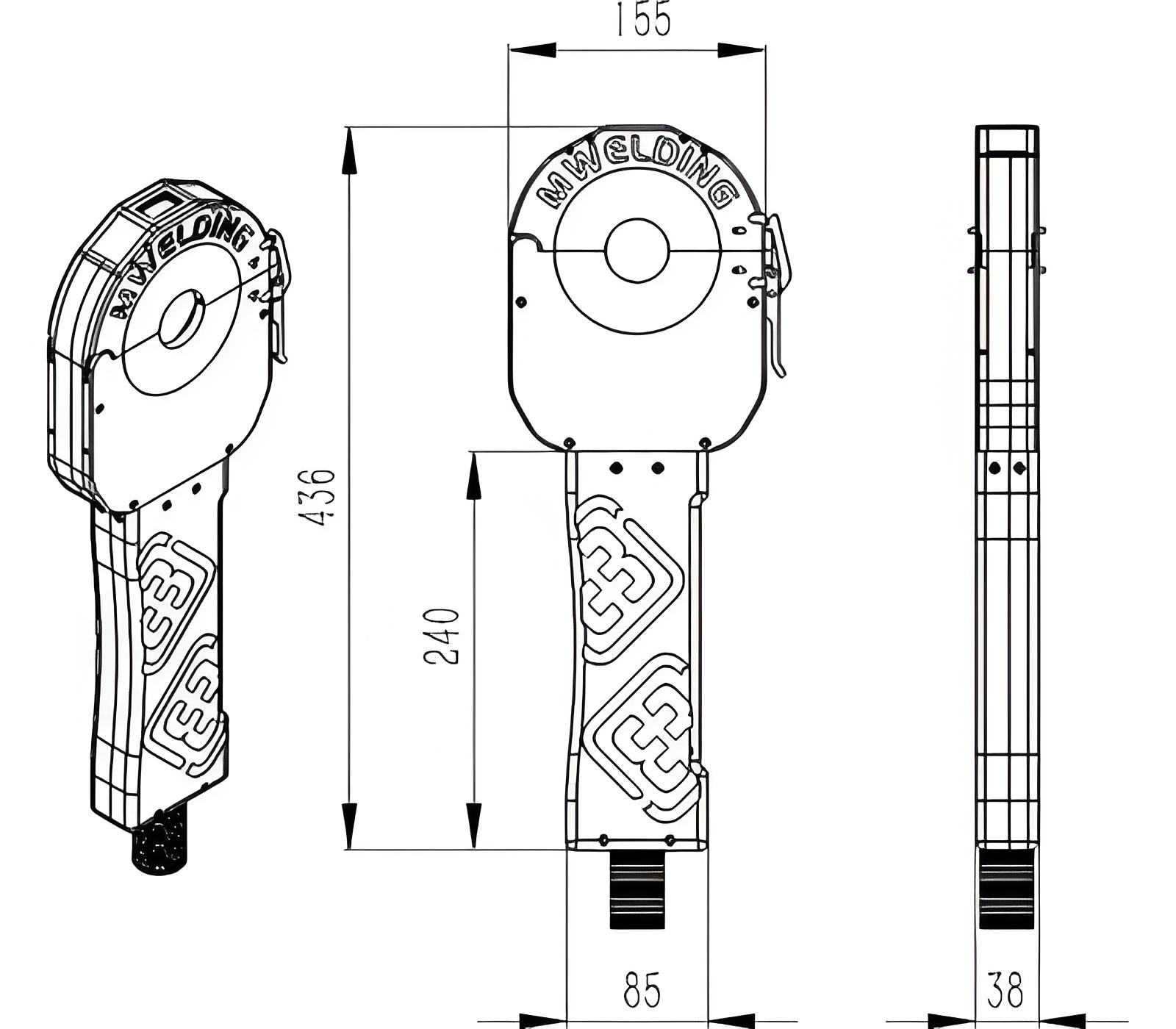

Pipe diameter and wall thickness	≤2.5mm	External dimensions	155mm×38mm×436mm
Applicable materials	Stainless steel, carbon steel, alloy steel	Welding gun weight	4KG
Tungsten electrode diameter	Φ1.6mm,Φ2.4mm	Supporting power supply	MWA-200
Protective gas	Argon

Number	NAME	SPECIFICATIONS	UNIT	QUANTITY	NOTE
1	Closed pipe welding machine	MWF-80	Piece	1	Standard
2	Integrated control power supply	MWA-200	Piece	1	Standard
3	Tungsten needle	Ф2.4mm×150mm	Piece	1	Standard

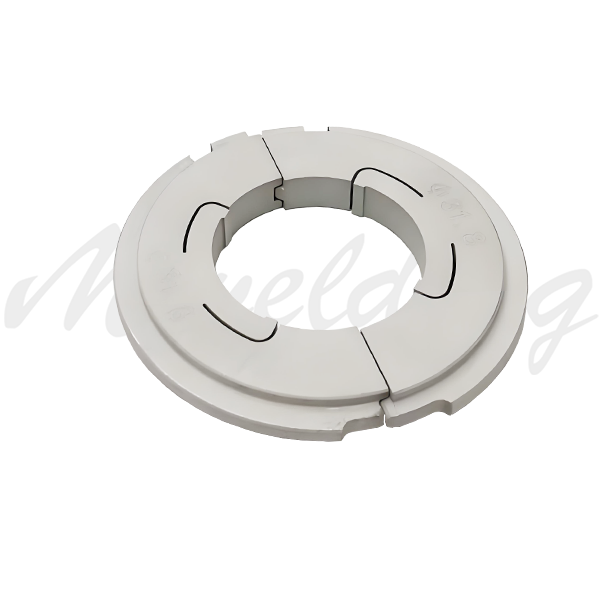

4	Straight pipe fixture	Customization	Piece	1	Standard
5	Tungsten needle extension device	Customization	Piece	1	Optional
6	Tungsten needle grinding machine	Customization	Piece	1	Optional
7	Flat mouth machine	Customization	Piece	1	Optional
