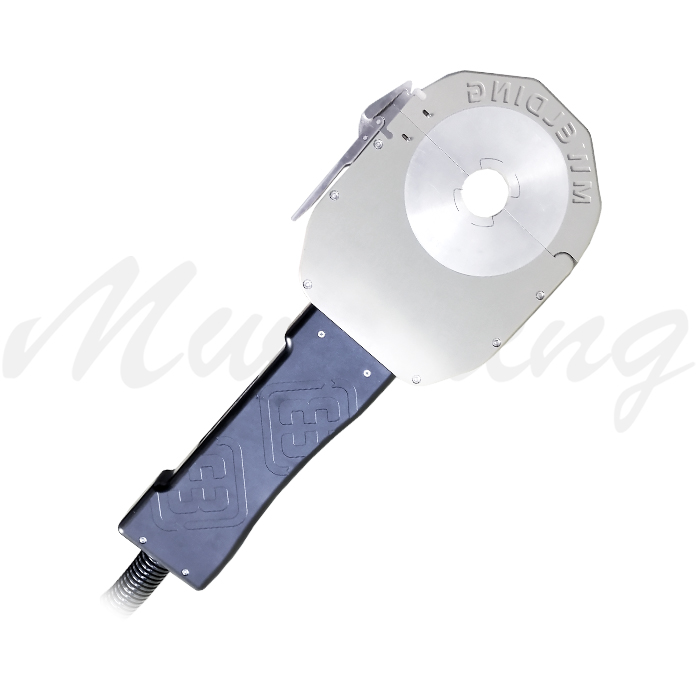

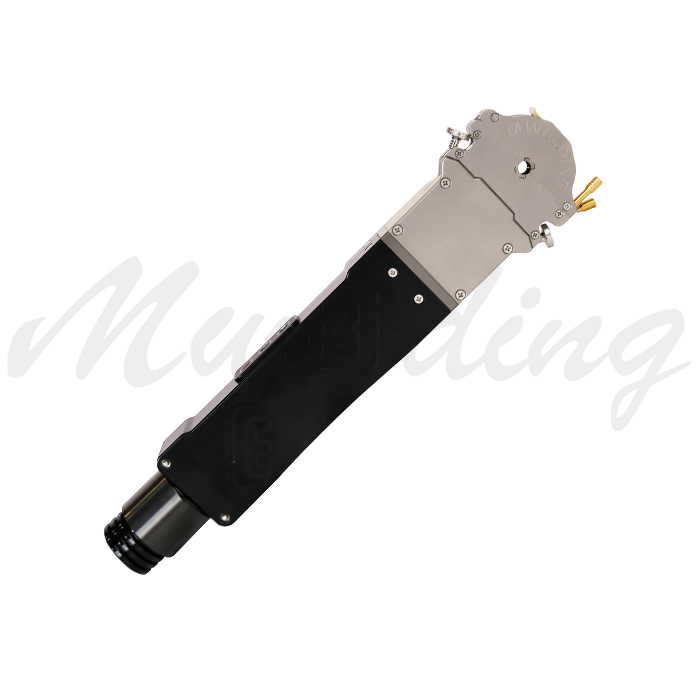

Closed Pipe Welding Machine MWF-12
Product Mode:MWF-12
Welding Method:Self-fusion
Product Features:Support welding wall thickness less than or equal to 1.0mm
Protection Method:Argon gas and circulating water cooling
Welding Gun Weight:1KG
Product Introduction
1. Application industry: instrumentation, hydraulic fluids, pneumatic engineering, pipeline installation, etc.
2. Welding of materials such as stainless steel, carbon steel, titanium alloy, etc.

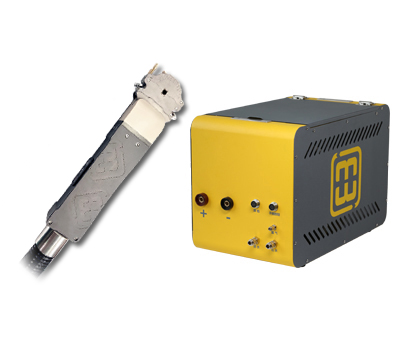

3. This device is used in conjunction with the MWA-200 integrated control power supply
4. Welding form: docking
5. Warranty period: two years
Product advantages
1. Ultra mini welding gun design, with a welding gun body thickness of only 36mm
2. The entire body of the welding gun is water-cooled, improving the loading rate of the welding gun
3. The welding gun adopts multi-channel gas protection to improve welding quality
4. Special welding gun designs, supporting welding wall thickness less than or equal to 1.0mm
5. Adopting imported core components and materials, durable, reliable, safe, and precise
Product parameters
| Suitable pipe diameter | Φ4.0mm-Φ12.7mm | Cooling method | Circulating water cooling |

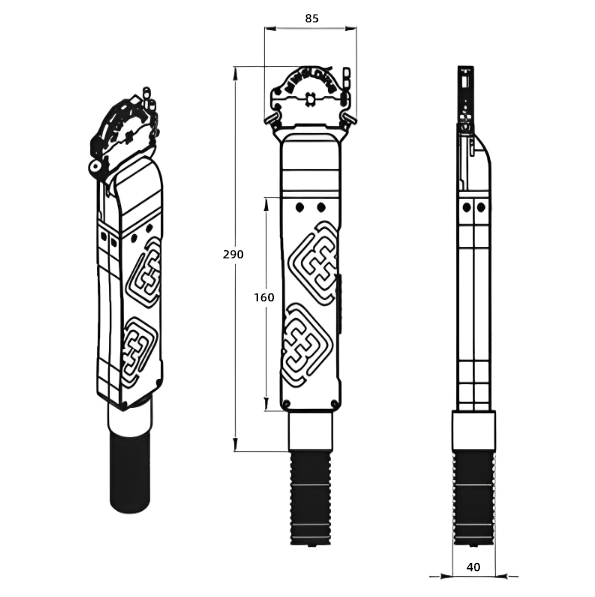

| Pipe diameter and wall thickness | ≤1.0mm | External dimensions | 290mm×85mm×40mm |
| Applicable materials | Stainless steel, carbon steel, alloy steel | Welding gun weight | 1KG |
| Tungsten electrode diameter | Φ1.0mm | Supporting power supply | MWA-200 |
| Protective gas | Argon |
Configuration List
| Number | NAME | SPECIFICATIONS | UNIT | QUANTITY | NOTE |
| 1 | Closed pipe welding machine | MWF-12 | Piece | 1 | Standard |
| 2 | Integrated control power supply | MWA-200 | Piece | 1 | Standard |
| 3 | Tungsten needle | Ф1.0mm×150mm | Piece | 1 | Standard |
| 4 | Pipe fittings and fixtures | Customization | Piece | 1 | Standard |
| 5 | Flat mouth machine | Customization | Piece | 1 | Standard |
Related Accessories

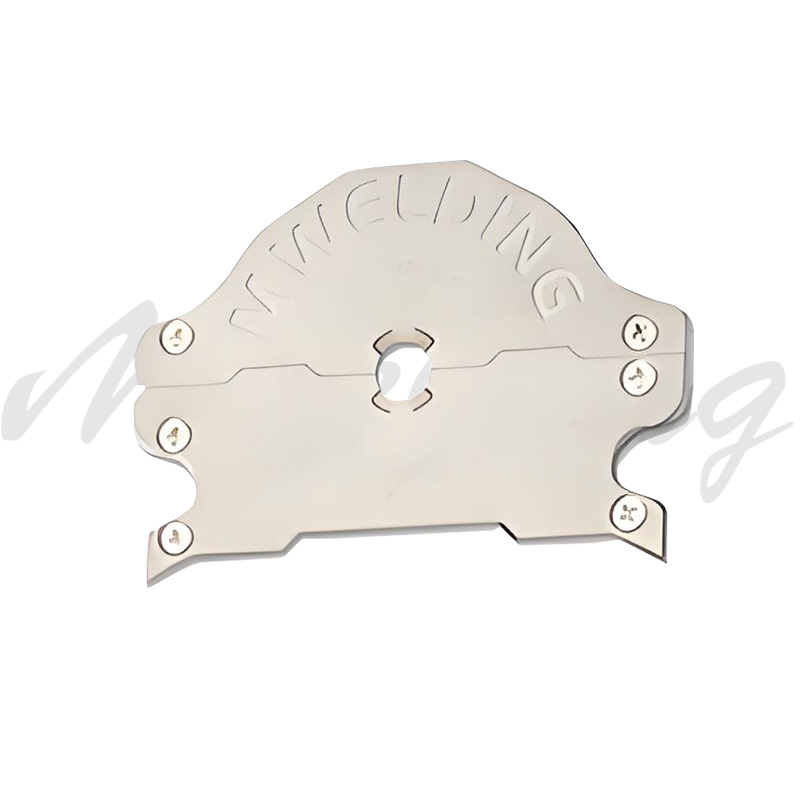

Fixture
Flat mouth machine
Tungsten needle grinding machine
