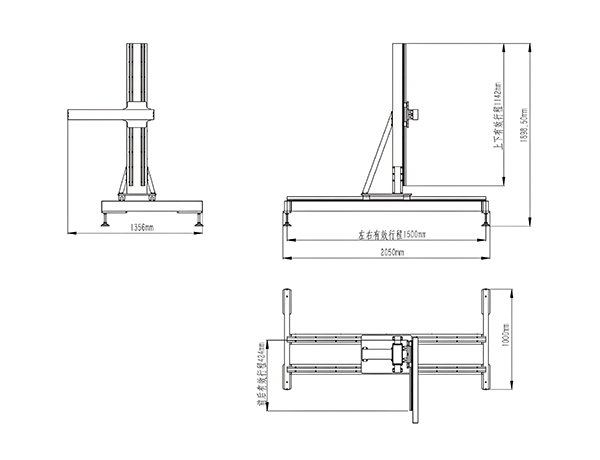

1. Effective travel of X-axis: 1500mm

2. Effective travel of Y-axis: 1100mm

3. Effective travel of Z-axis: 400mm

4. Weight: 120kg

1.Operate the movement of the X, Y, and Z axes of the rack, and adjust the angle of the welding clamp connection, making it more convenient and efficient to position the tube plate welding clamp vertically with the overall workpiece;

2. 90% made of aluminum alloy, lightweight and sturdy with stronger mechanical performance;

3. The balance block is matched with the guide rail to achieve high maneuverability and operability;

4. Install universal wheels at the bottom of the rack, equipped with adjustable foot supports for flexible operation;

5. Install brake cylinders on each of the three axes to facilitate the fixation of the frame;
