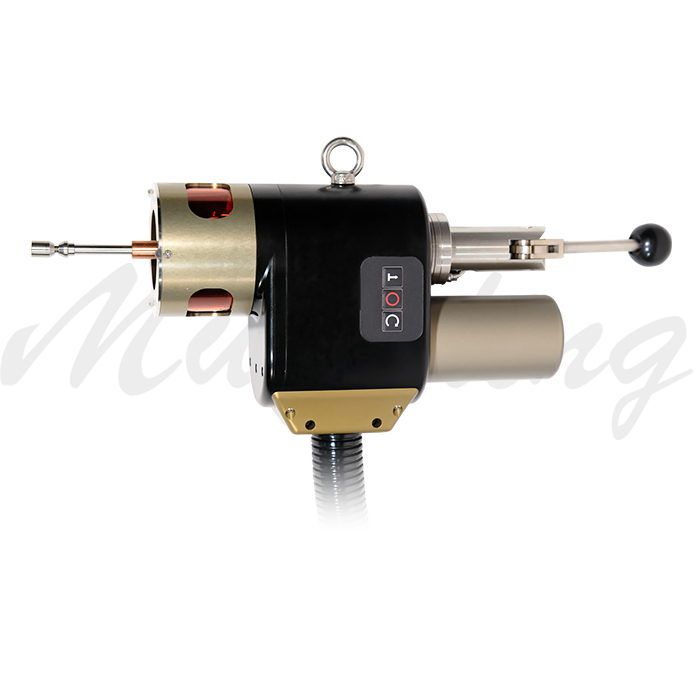

Mini Pipe Sheet Welding Machine MWP-38
Product Mode:MWP-38
Welding Method:Self-fusion
Product Features:Argon arc self fusion full position welding, center rod water-cooled directly to the positioning expansion core
Protection Method:Argon gas and circulating water cooling
Welding Gun Weight:2KG
Product Introduction
1. Application industry: boilers, refrigeration, heat exchangers, pressure vessels, etc;
2. Scope of application: Welding of U-shaped tubes in heat exchangers made of stainless steel, carbon steel, titanium alloy and etc；

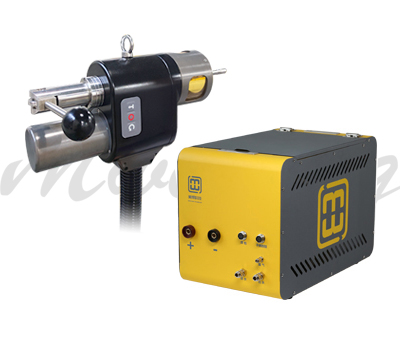

3. This device is used in conjunction with the MWA-200 integrated control power supply；
4. Welding form: pipe flush welding；
5. Warranty period: One year
Product advantages
1. One click pneumatic core expansion structure, quickly position the welding gun;
2. Water-cooled, improving the loading rate of the welding gun; Argon arc self melting
3. Multiple gas path protection for head gas and welding gun to improve welding quality;
4. Compact structural design with the central pole water-cooled directly to the expansion core
5. Suspended and fixed lifting equipment, flexible working space and wide range
Product parameters
| Suitable pipe diameter | Inner diameter Φ 10mm - outer diameter Φ 38.1mm | Cooling method | Circulating water cooling |

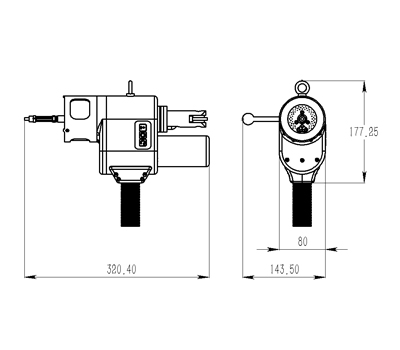

| Welding wire diameter | / | External dimensions | 563mm×241mm×286mm |
| Applicable materials | Stainless steel, carbon steel, alloy steel | Welding gun weight | 2KG |
| Tungsten electrode diameter | Φ2.0、2.4mm | Supporting power supply | MWA-200 |
| Protective gas | Argon | Manual adjustment of welding gun angle | less or equal to 30° |
Configuration List
| Number | Name | Specifications | Unit | Quantity | Note |
| 1 | Pipe Sheet welding machine | MWP-38 | piece | 1 | Standard |
| 2 | Integrated control power supply | MWA-200 | piece | 1 | Standard |
| 3 | Wire feeding nozzle | Customization | piece | 1 | Standard |
| 4 | Tungsten needle | Ф2.0mm×150mm Ф2.4mm×150mm | piece | 2 | Standard |
| 5 | Ceramic nozzle | Customization | piece | 1 | Standard |
| 6 | Tungsten electrode clamp | Ф2.4 | piece | 1 | Standard |
| 7 | Core expansion | Customization | piece | 1 | Standard |
| 8 | Expansion core copper sleeve | Customization | piece | 1 | Standard |
| 9 | Tungsten needle grinding machine | Customization | piece | 1 | Optional |
| 10 | Flat mouth machine | Customization | piece | 1 | Optional |
Related Accessories
Tungsten Needle
Core Expansion
Tungsten needle grinding machine

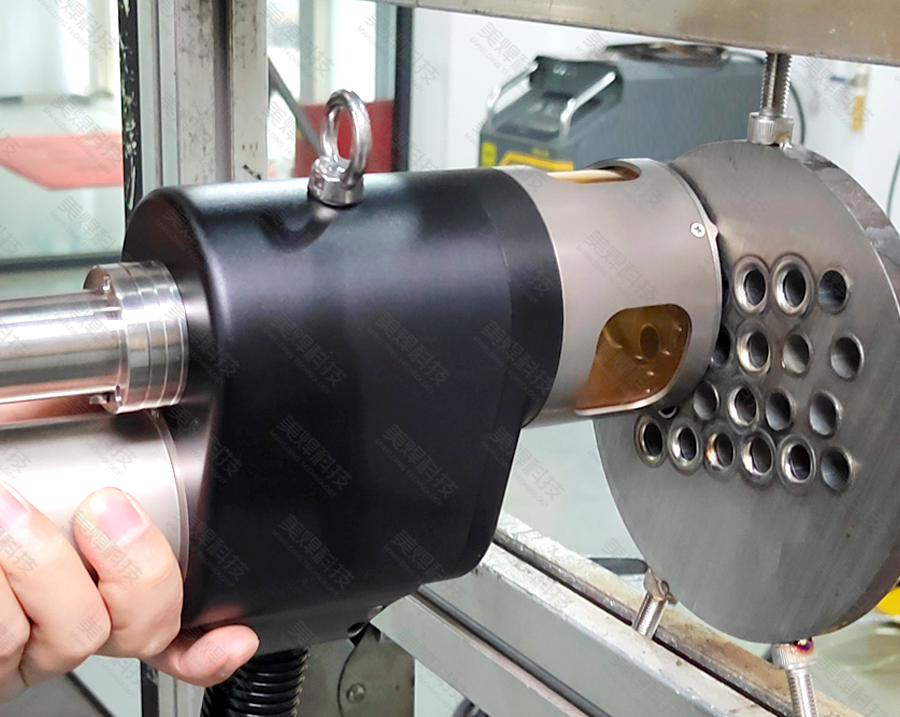

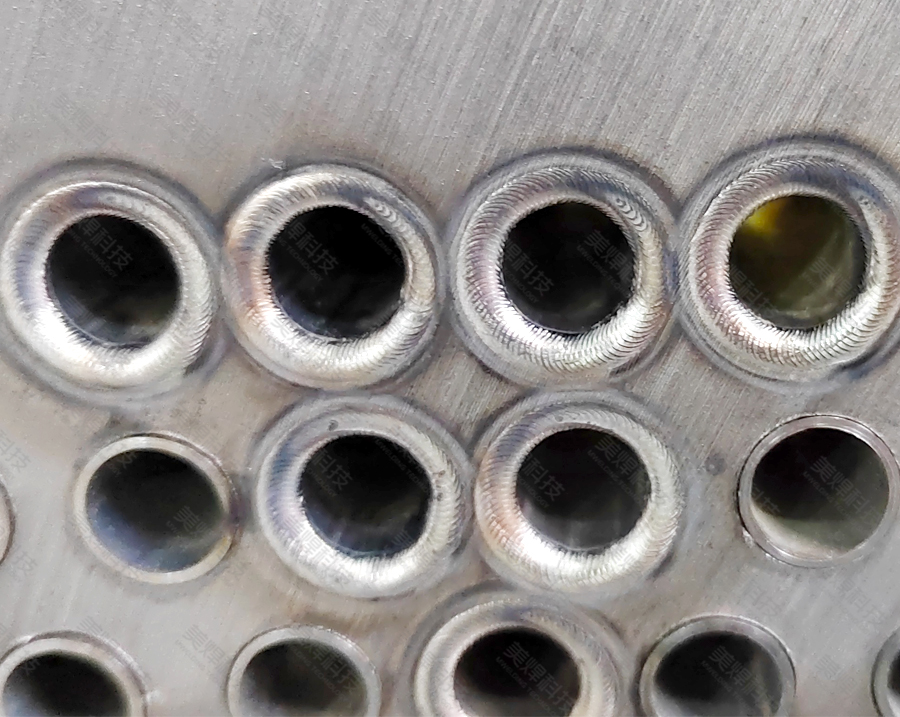

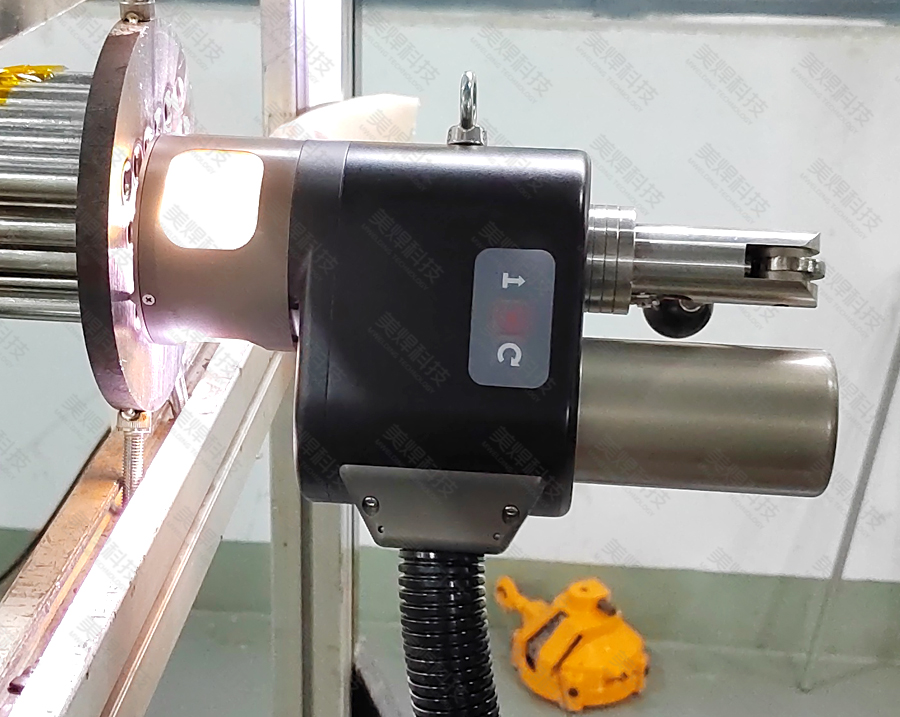

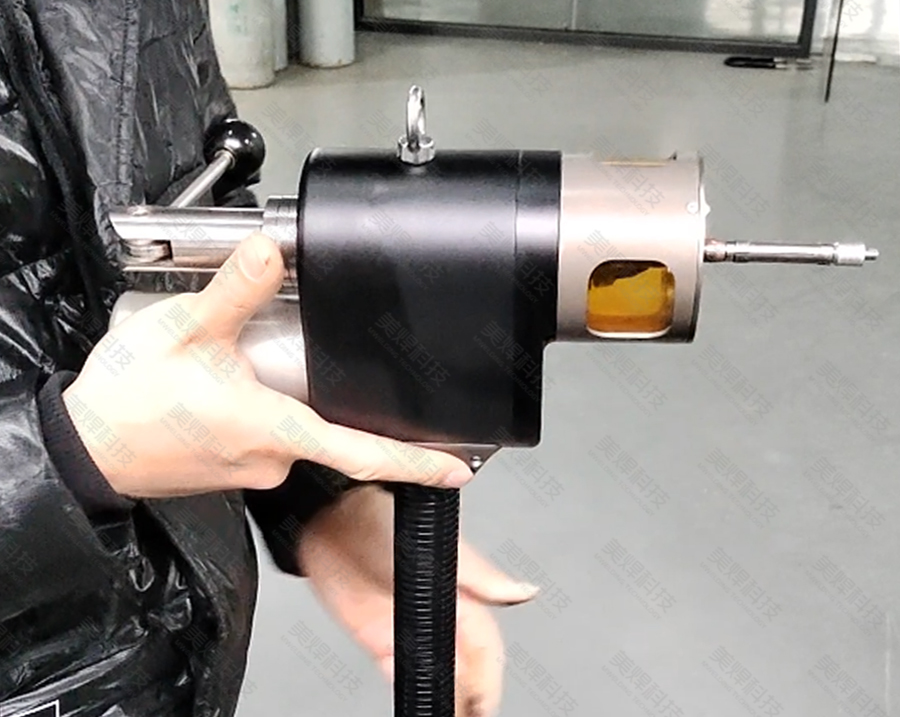

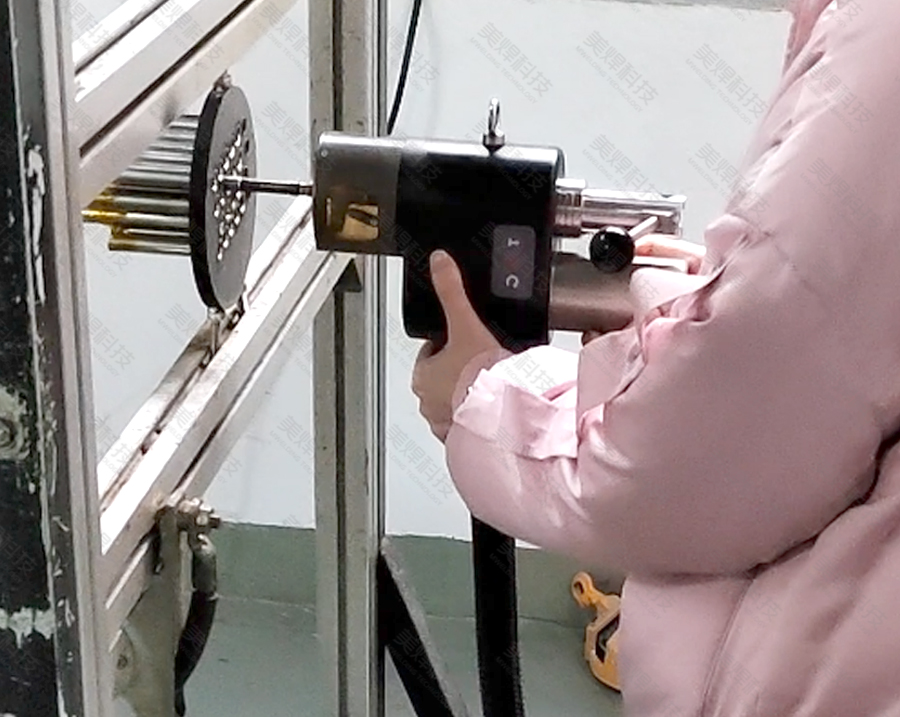

Application Scenarios
