Open Pipe Welding Machine MWG-325
Product Mode:MWG-325
Welding Method:Self-fusion or filler wire
Product Features:Suitable for wall thickness of 3-10mm, with V-shaped grooves and single side welding and double-sided forming
Protection Method:Argon gas and circulating water cooling
Welding Gun Weight:36KG
Product Introduction
1. Application industry: Pressure vessels, boilers, chemical petroleum, pipeline installation, etc
2. Scope of application: Welding of materials such as stainless steel, carbon steel, etc

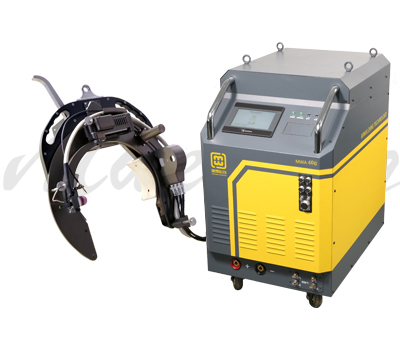

3. This device is used in conjunction with the MWA-400 integrated control power supply
4. Welding form: docking, plug-in connection
5. Warranty period: One year
Product advantages
1. The clamp type fixture makes the installation of the welding gun convenient and reliable;
2. The gun head and welding torch are partially cooled by circulating water to improve the temporary loading rate；
3. Equipped with automatic arc length and lateral swing functions, reducing manual interference；
4. Suitable for wall thickness of 3-12mm, with V-shaped grooves and single side welding and double-sided forming
5. Adopting imported core components and materials, durable, reliable, safe, and precise
Product parameters
| Suitable pipe diameter | Φ159mm-Φ325mm | Cooling method | Circulating water cooling |

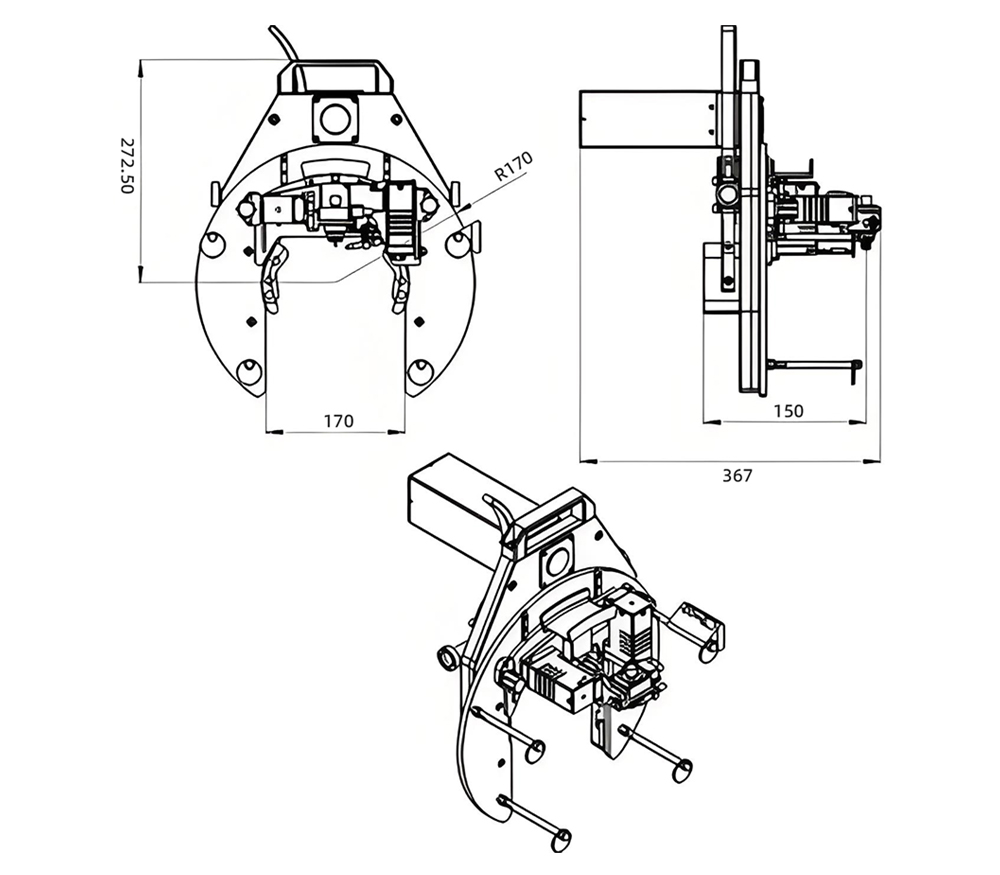

| Welding wire diameter | Φ0.8mm, Φ1.2mm | External dimensions | 590mm×497mm×730mm |
| Applicable materials | Stainless steel, carbon steel | Welding gun weight | 36KG |
| Tungsten electrode diameter | Φ3.0mm | Supporting power supply | MWA-400 |
| Protective gas | Argon | Manual adjustment of welding gun angle | less or equal to 45 degree |
Configuration List
| Number | NAME | SPECIFICATIONS | UNIT | QUANTITY | NOTE |
| 1 | Open pipe welding machine | MWG-325 | Piece | 1 | Standard |
| 2 | Integrated control power supply | MWA-400 | Piece | 1 | Standard |
| 3 | Tungsten needle | Ф2.4mm×150mm,Ф3.2mm×150mm | Piece | 1 | Standard |
| 4 | Tungsten electrode clamp | Ф2.4mm,Ф3.2mm | Piece | 1 | Standard |
| 5 | Ceramic nozzles | Customization | Piece | 1 | Standard |
| 6 | Inner Clamps | Customization | Piece | 1 | Standard |
| 7 | External Clamps | Customization | Piece | 1 | Standard |
| 8 | External wire feeder | Customization | Piece | 1 | Standard |
| 9 | Groove machine | Customization | Piece | 1 | Optional |
| 10 | Tungsten needle grinding machine | Customization | Piece | 1 | Optional |
Related Accessories
-
External Wire Feeder
-

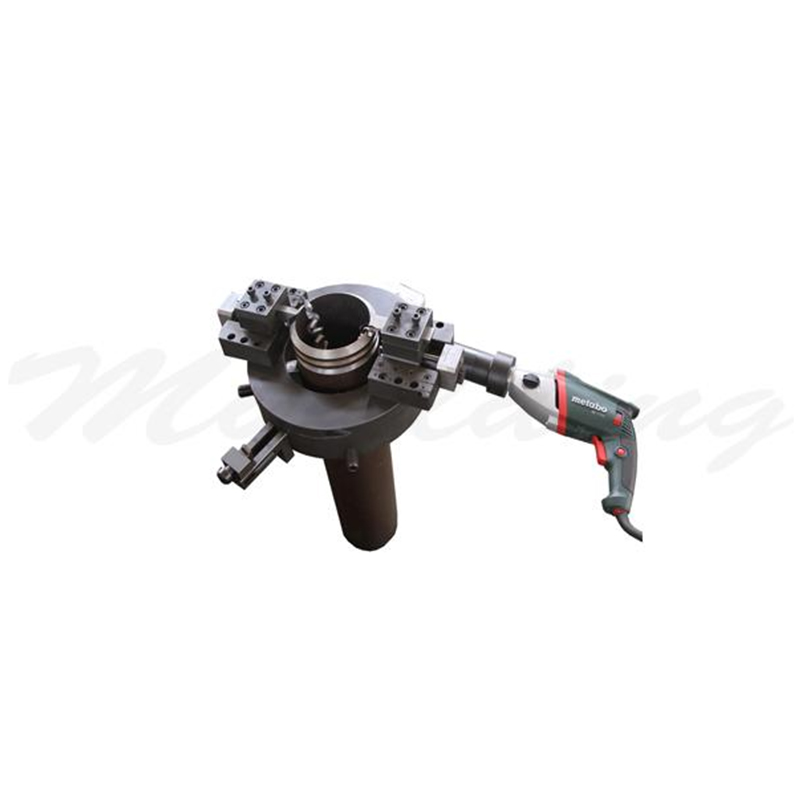

Groove Machine
-

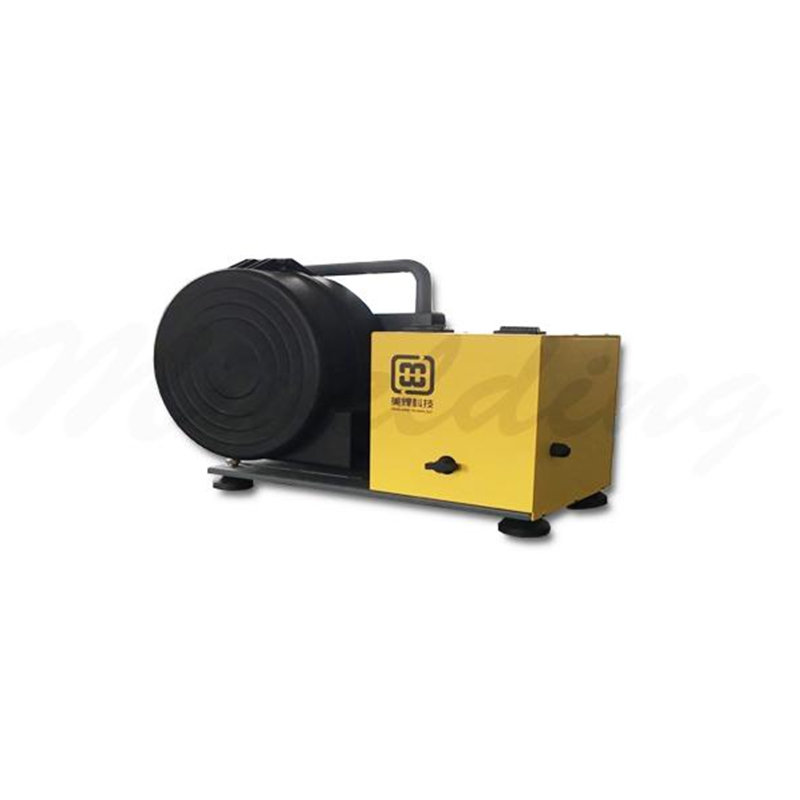

Tungsten needle grinding machine
