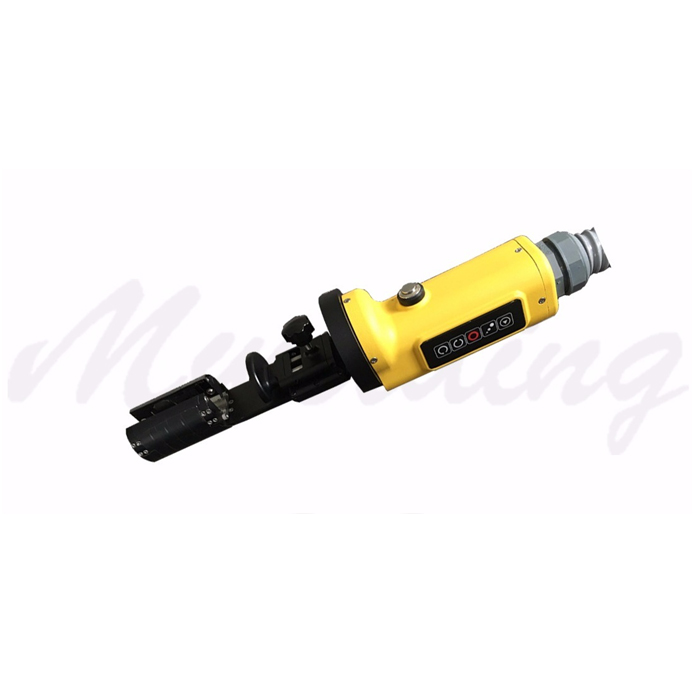

U-shaped Pipe Welding Machine for Heat Exchanger MWH-12A
Product Mode:MWH-12A
Welding Method:Self-fusion
Product Features:Tailored and personalized customization
Protection Method:Argon gas and circulating water cooling
Welding Gun Weight:1.5KG
Product Introduction
1. Application industry: heat exchanger and refrigeration industry;
2. Scope of application: Welding of U-shaped tubes in heat exchangers made of stainless steel, carbon steel, and other materials；

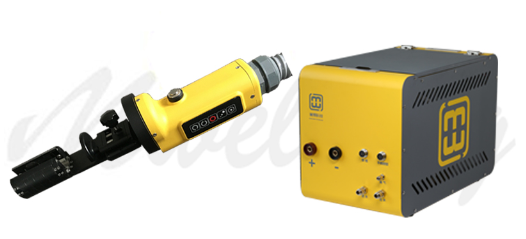

3. This device is used in conjunction with the MWA-200 integrated control power supply；
4. Welding form: plug-in connection；
5. Warranty period: One year
Product advantages
1. A machine specifically designed for welding U-shaped tubes for heat exchangers;
2. The entire body of the welding gun is water-cooled, improving the loading rate of the welding gun；
3. The welding gun adopts multi-channel gas protection to improve welding quality；
4. One person can operate two welding guns simultaneously, simple and convenient；
5. Adopting imported core components and materials, durable, reliable, safe, and precise。
Product parameters
| Suitable pipe diameter | Φ12mm-Φ13.5mm | Cooling method | Circulating water cooling |

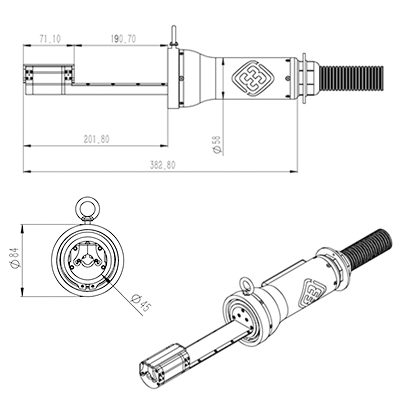

| Center distance of U-shaped pipe | ≥38mm | External dimensions | 85mm×48mm×255mm |
| Applicable materials | Stainless steel, carbon steel | Welding gun weight | 1.5KG |
| Tungsten electrode diameter | Φ1.6mm | Supporting power supply | MWA-200 |
| Protective gas | Argon |
Configuration List
| Number | NAME | SPECIFICATIONS | UNIT | QUANTITY | NOTE |
| 1 | Heat exchanger U-shaped pipe welding machine | MWH-12DA | Piece | 1 | Standard |
| 2 | Integrated control power supply | MWA-200 | Piece | 1 | Standard |
| 3 | Tungsten needle | Ф1.6mm×150mm | Piece | 1 | Standard |
| 4 | Tungsten needle mold | Customization | Piece | 1 | Standard |
| 5 | Special wrench | Customization | Piece | 1 | Standard |
| 6 | Tungsten needle cutting machine | Customization | Piece | 1 | Optional |
| 7 | Flat mouth machine | Customization | Piece | 1 | Optional |
Related Accessories
Tungsten needle
Flat mouth machine
Tungsten needle grinding machine

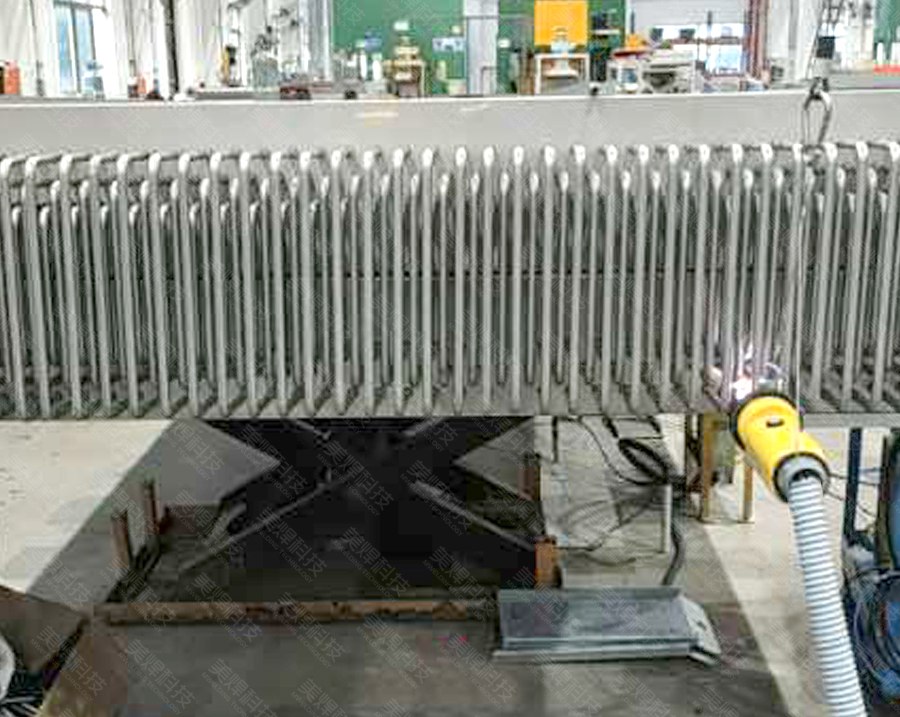

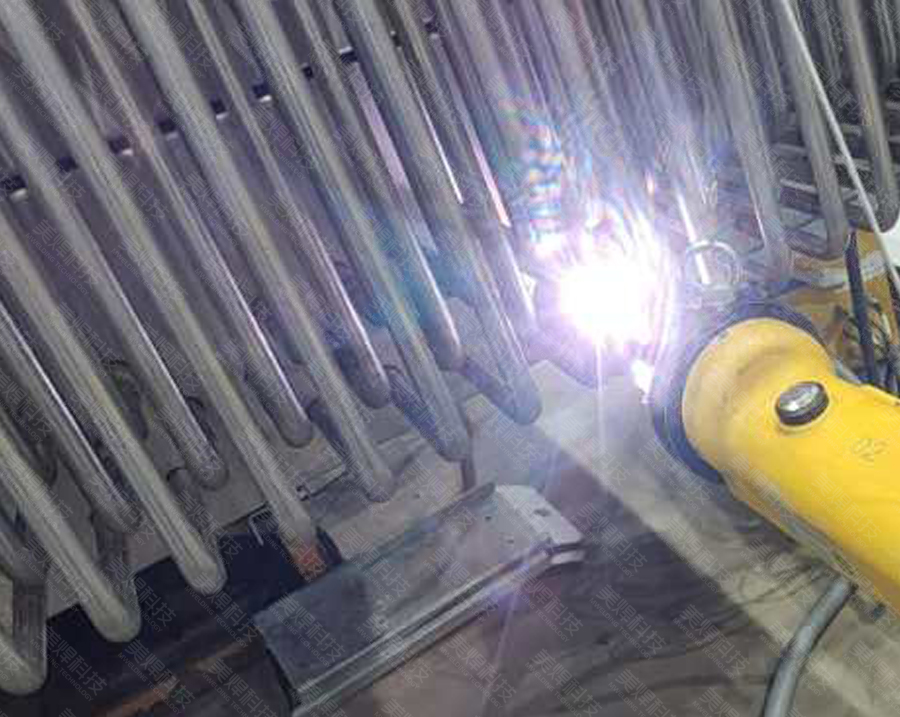

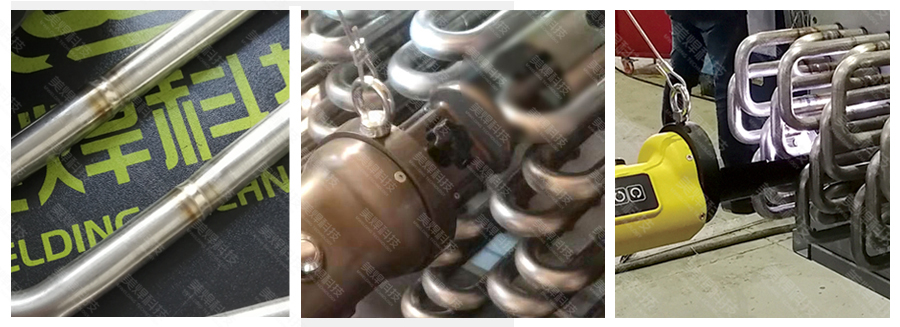

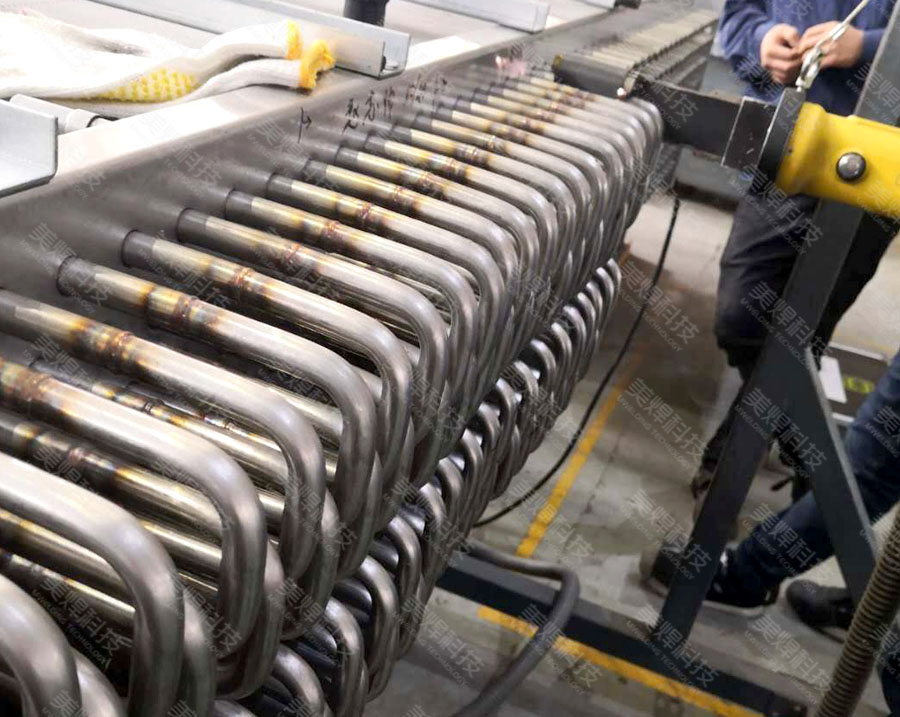

Application Scenarios
