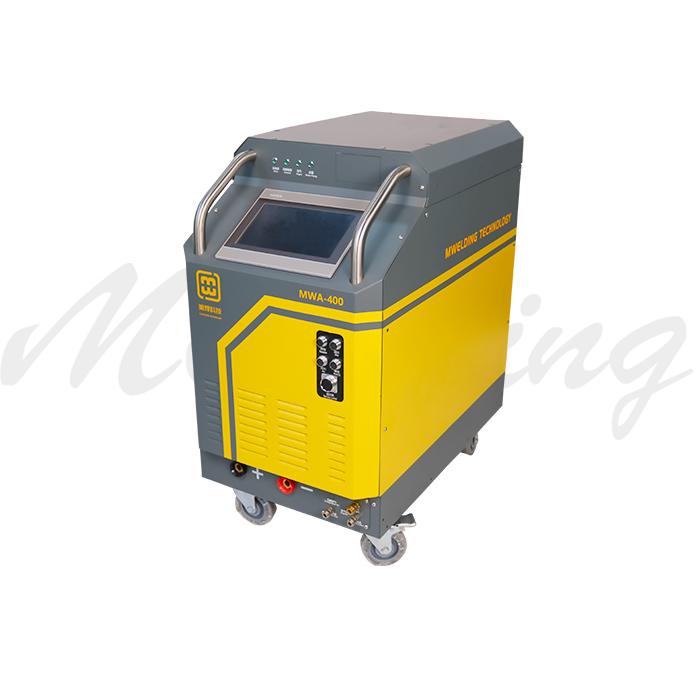

Integrated Welding Control Power Supply MWA-400
Product Mode:MWA-400
Power Type:Inverter DC
Product Features:Integrated water, electricity, and gas, on-site mobility, simple and convenient installation and operation
Input Power Supply:Three-phase 380V±10% 50/ 60 Hz+ ground wire
Product Introduction
1. The appearance design is a rational tool, concise yet not simple
2. The internal structure design is reasonable and easy to move, install, and operate on-site;
3. Intelligent microcontroller control system ensures powerful functions, stable and fast operation;
4. Matching circulating water cooling and dual fan cooling systems greatly improves the temporary loading rate of the welding gun;
5. A brand new human-computer interaction system makes operation simpler and more convenient
Product advantages
1. Real time monitoring of various welding parameters during welding
2. Equipped with pulleys for easy on-site movement, installation, and operation
3. Various protection systems can effectively ensure the service life of the equipment
4. New human-computer interaction system, simple and convenient
5. Adopting imported core components and materials, durable, reliable, safe, and precise
Product parameters
| Product Type | MWA-400 | Insulation level | H |

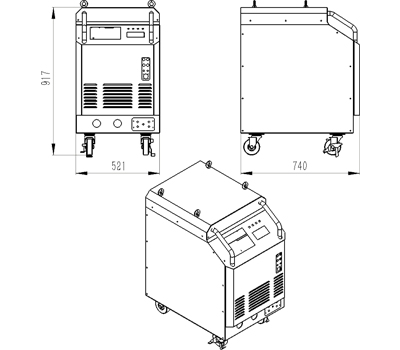

| Duty Cycle | 400A 60% | External dimensions | 740mm×521mm×917mm |
| Power Type | Inverter DC | Protection level | IP 23 |
| Input Power Supply | Three phrase 380V±10% 50/ 60 Hz+ ground wire | Supporting Welding Machine | Pipe sheet welding machine, Open pipe welding machine |
| Welding Current | 5-315A | Weight | 120KG |
Configuration List
| Number | Name | Brand |
| 1 | Welding machine | EWM |
| 2 | Control | Single Chip |
| 3 | Electrical components | Omron |
| 4 | Touch Screen | Taiwan China |
| 5 | Wire and Cable | Qifan |
Related Accessories
Open Pipe Welding Machine MWG-230
Pipe Sheet Welding Machine
Open Pipe Welding Machine MWG-90

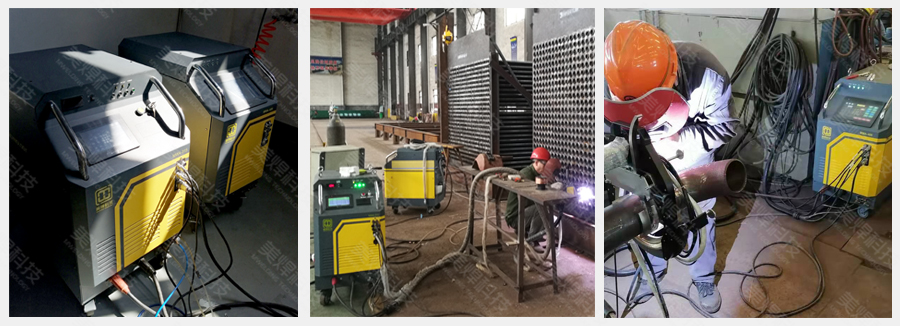

Application Scenarios
