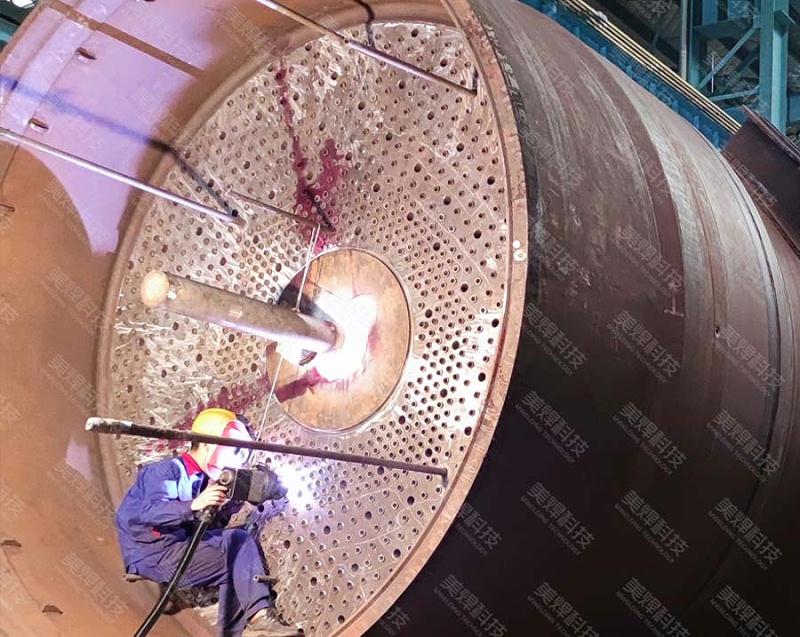

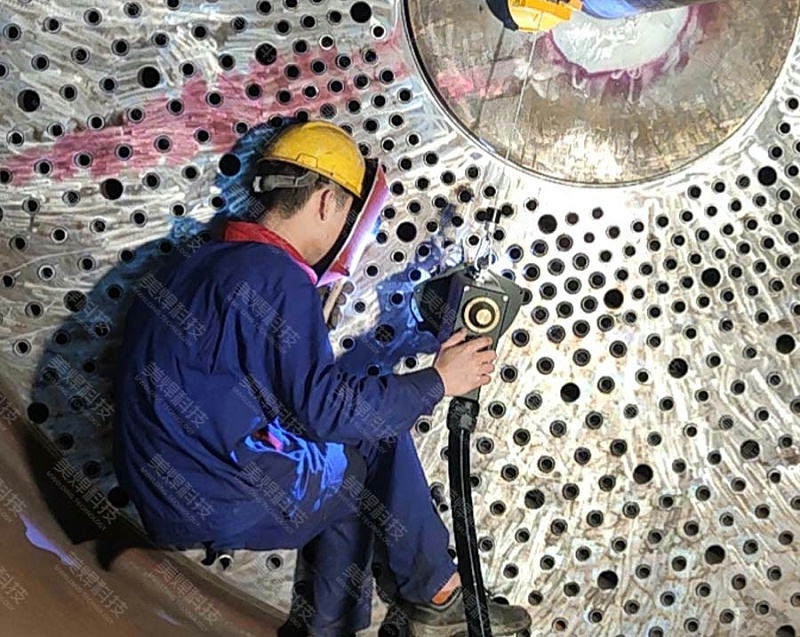

Project Location: Hunan Province

Application Industry: Heat Exchanger

Products involved: Mwelding Closed Pipe Welding Equipment, Fully Automatic Welding Machine

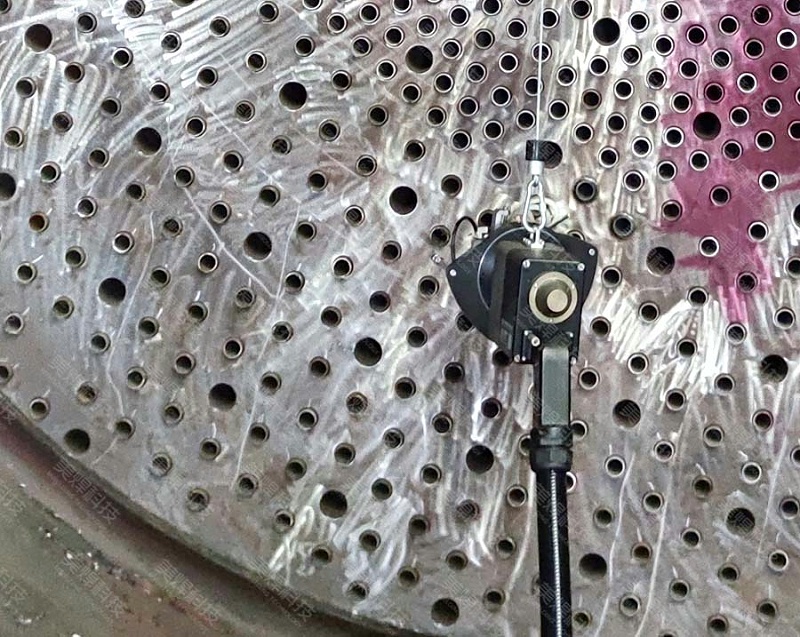

MWP Pipe Sheet Welding Machine, Pipe Sheet Welding Machine

Mainly used for welding stainless steel, carbon steel, titanium alloy and other pipelines with a wall thickness of ≥ 1mm; Intelligent digital welding control system, equipped with expert database, well formed, with automatic arc length and lateral swing function, can complete welding corner height of 6-7mm in one welding. Φ The 15mm pipe diameter can be welded in 20 seconds at a time, with extremely high efficiency and good weld formation, resulting in a high pass rate. Imported core components from Germany, multiple other protections, whole body water cooling. The product is precise, efficient, durable, cost-effective, and easy to learn with just one click operation. Portable body, flexible operation, supporting one-to-one fixed system, and providing full process technical services;

The product is widely used in fields such as food and pharmaceutical, biological fermentation, water treatment, air conditioning and refrigeration, instrumentation, pressure vessels, aerospace, pipeline installation, etc;

Applicable pipe diameter:

MWP-65 is suitable for pipe diameter: Φ 12-63mm

MWP-80 is suitable for pipe diameter: Φ 12-76mm

MWP-120 is suitable for pipe diameter: Φ 6-114mm

Welding Type:

Straight pipe - straight pipe, straight pipe - chuck, straight pipe - tee, straight pipe - elbow;Tube protruding plates, tube flush plates, etc; Chuck - elbow, chuck - tee, large U-bend, etc;

Mwelding Technology's welding products and services have been tested in the market for a long time and have received unanimous praise from customers!

Customer satisfaction is our greatest support! Thank you for your trust and we are dedicated to providing you with our services!

Business Hotline: 189-189-61606
